Raptor 110
Yamaha Raptor 110 Australia for Sale at TeamMoto Yamaha Sunshine Coast in Maroochydore, QLD | Specifications and Review Information

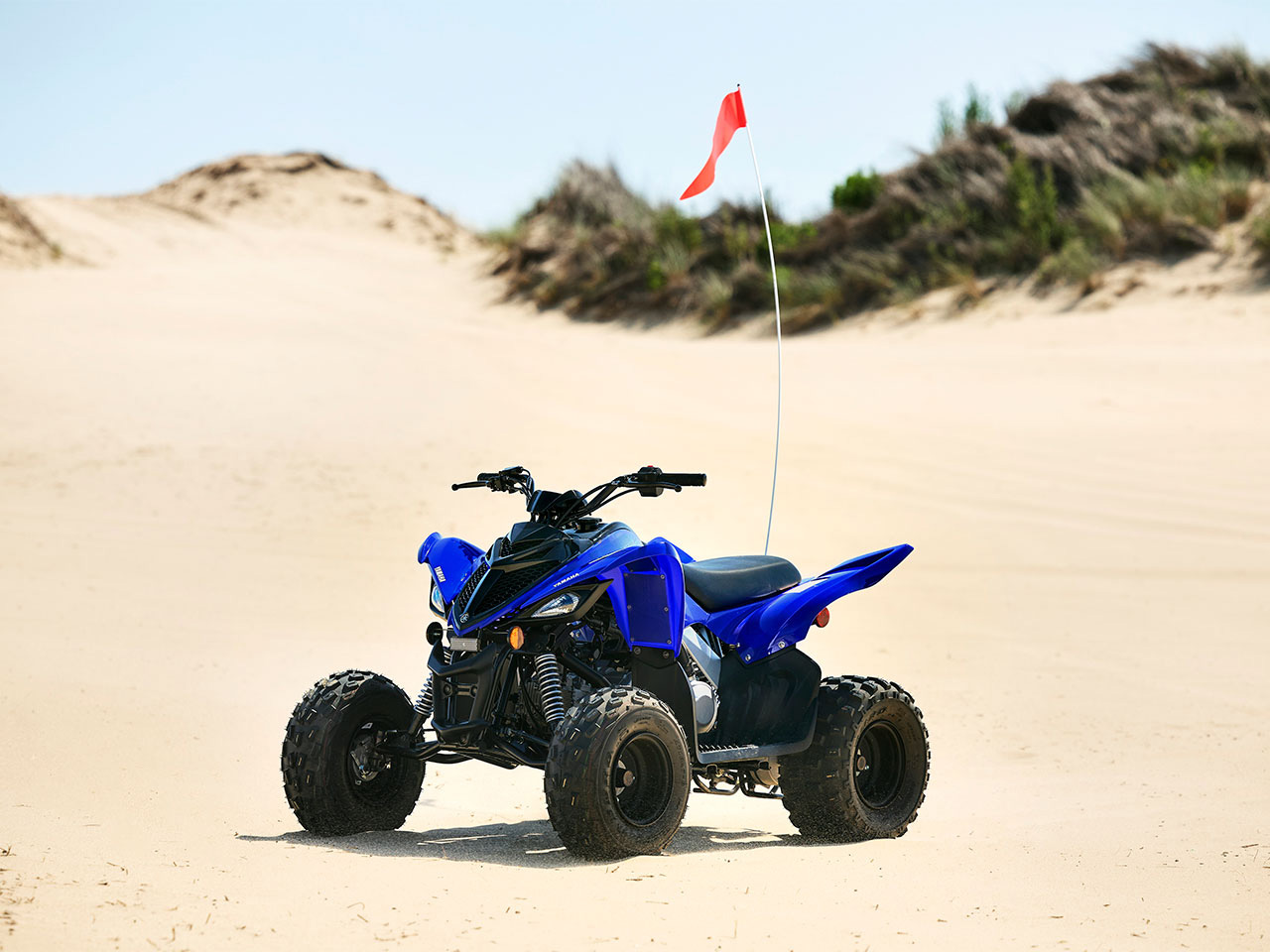

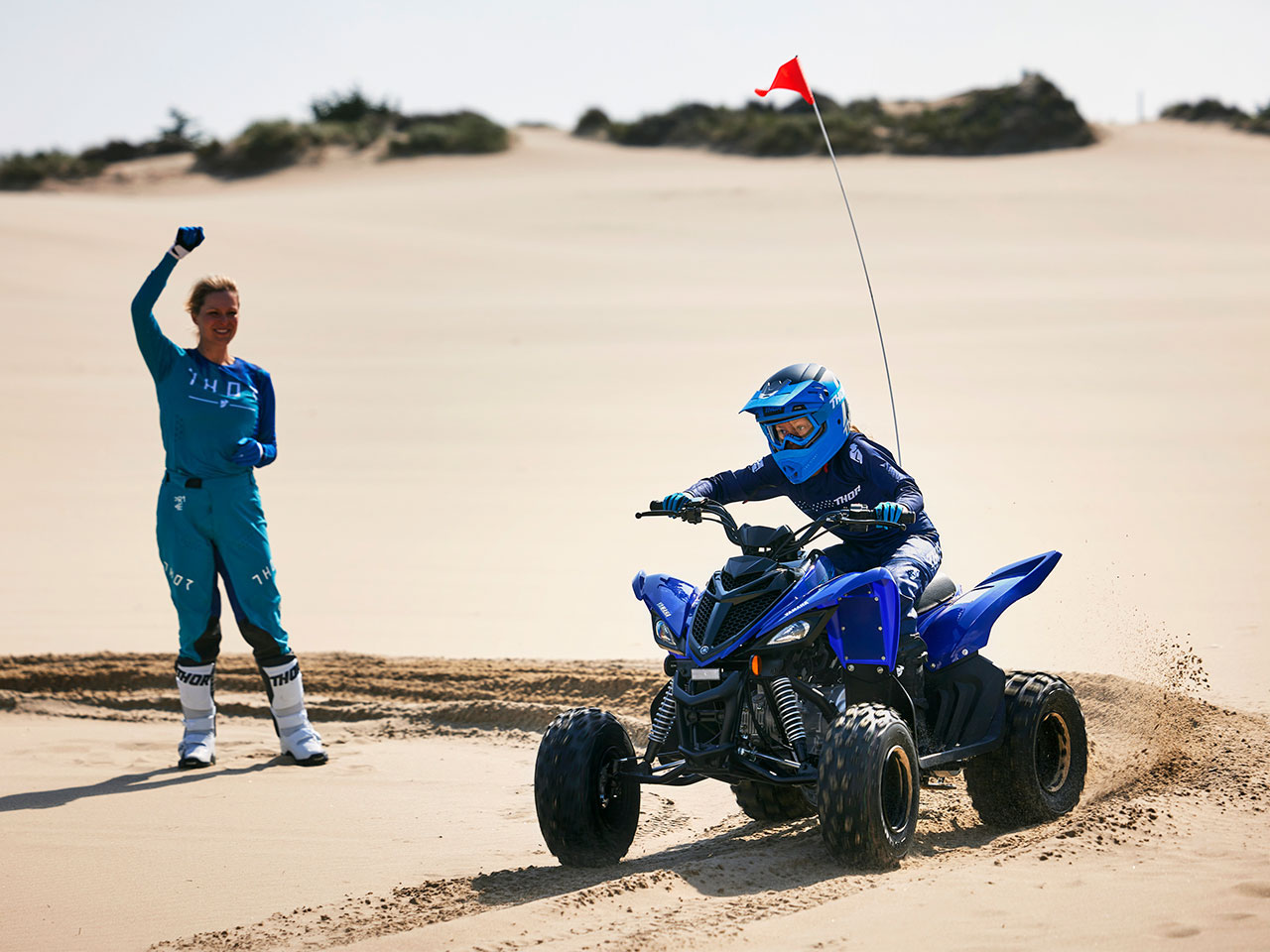

The Raptor 110 is built to bring maximum fun to ATV riders ages 10 and up. A new fuel-injected 112cc air-cooled SOHC 4-stroke engine is tuned to develop excellent low- to mid-range performance. A fully automatic CVT transmission with reverse, a gated shifter, and electric start all come standard.
Designed based on the top-selling Raptor 700R, this entry-level ATV brings Yamaha's Proven Off-Road sport ATV performance, legacy, and quality to new riders as they develop their skills and embrace their passion for motorsports.
Team Yamaha Blue
Teal

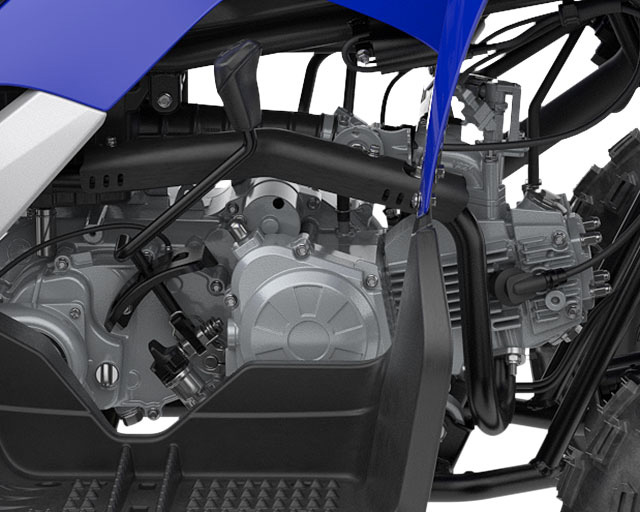

SPORTY 112CC ENGINE
The new fuel-injected 112cc four-stroke SOHC engine is tuned to develop excellent low- to mid-range performance, just where it's needed. The engine is air-cooled for simplicity, performance and long life, and uses ultra-reliable wet-sump lubrication.
SCALED DOWN NOT SCALED BACK
Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality, with preload-adjustable shocks offering 127mm of wheel travel and adding to the Raptor 110's full-size ATV look. The rear swingarm also features a 5-way preload adjustable shock, offering 145mm of wheel travel.
MODERN RELIABLE ELECTRONICS
The new EFI system with an ECU delivers strong, reliable performance. A sealed, maintenance-free battery provides worry-free operation. Convenient handlebar-mounted reverse and neutral indicators, along with new engine warning and low-fuel warning lights keep the rider informed in all situations.
OPTIMISED TYRES
Duro low-profile tyres - AT18 x 7-8 front and AT18 x 9-8 rear - give the Raptor 110 aggressive looks and sporty handling.
Comfortable Chassis
An advanced frame design incorporates a large 6.7 litre fuel tank, plush seat and roomy integrated floorboards on an optimised wheelbase.
Engine
| Engine Type | Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder |
|---|---|
| Displacement | 112 cc |
| Bore x Stroke | 52.4 x 51.8 mm |
| Compression Ratio | 9.2 : 1 |
| Lubrication System | Wet sump |
| Fuel Management | Fuel Injection |
| Ignition | TCI |
| Starter System | Electric |
| Fuel Tank Capacity | 6.8 L |
| Final Transmission | Chain |
| Transmission | V-belt automatic, F, N, R |
Chassis
| Frame Type | Steel tube |
|---|---|
| Suspension Front | Single A-arm, 127mm travel |
| Suspension Rear | Swingarm, 145mm travel |
| Brakes Front | Dual drum |
| Brakes Rear | Drum |
| Tyres Front | AT 18 x 7-8 |
| Tyres Rear | AT 18 x 9-8 |
Dimensions
| Length | 1485 mm |
|---|---|
| Width | 1020 mm |
| Height | 991 mm |
| Seat Height | 750 mm |
| Wheelbase | 1030 mm |
| Ground Clearance | 210 mm |
| Wet Weight | 130.4 kg |
