Tracer 7
Yamaha TRACER 7 for Sale at TeamMoto Yamaha Sunshine Coast in Maroochydore, QLD | Specifications and Review Information

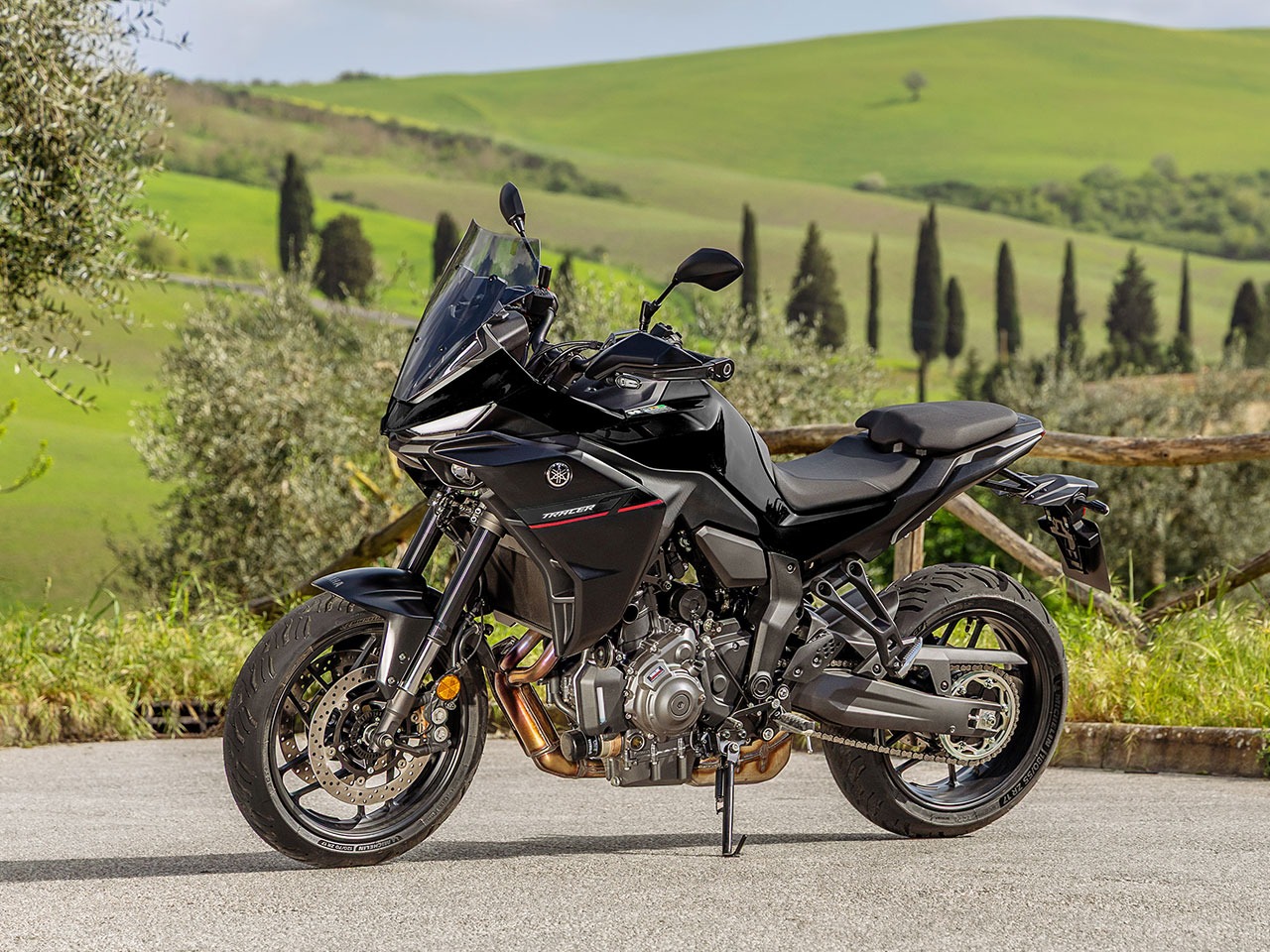

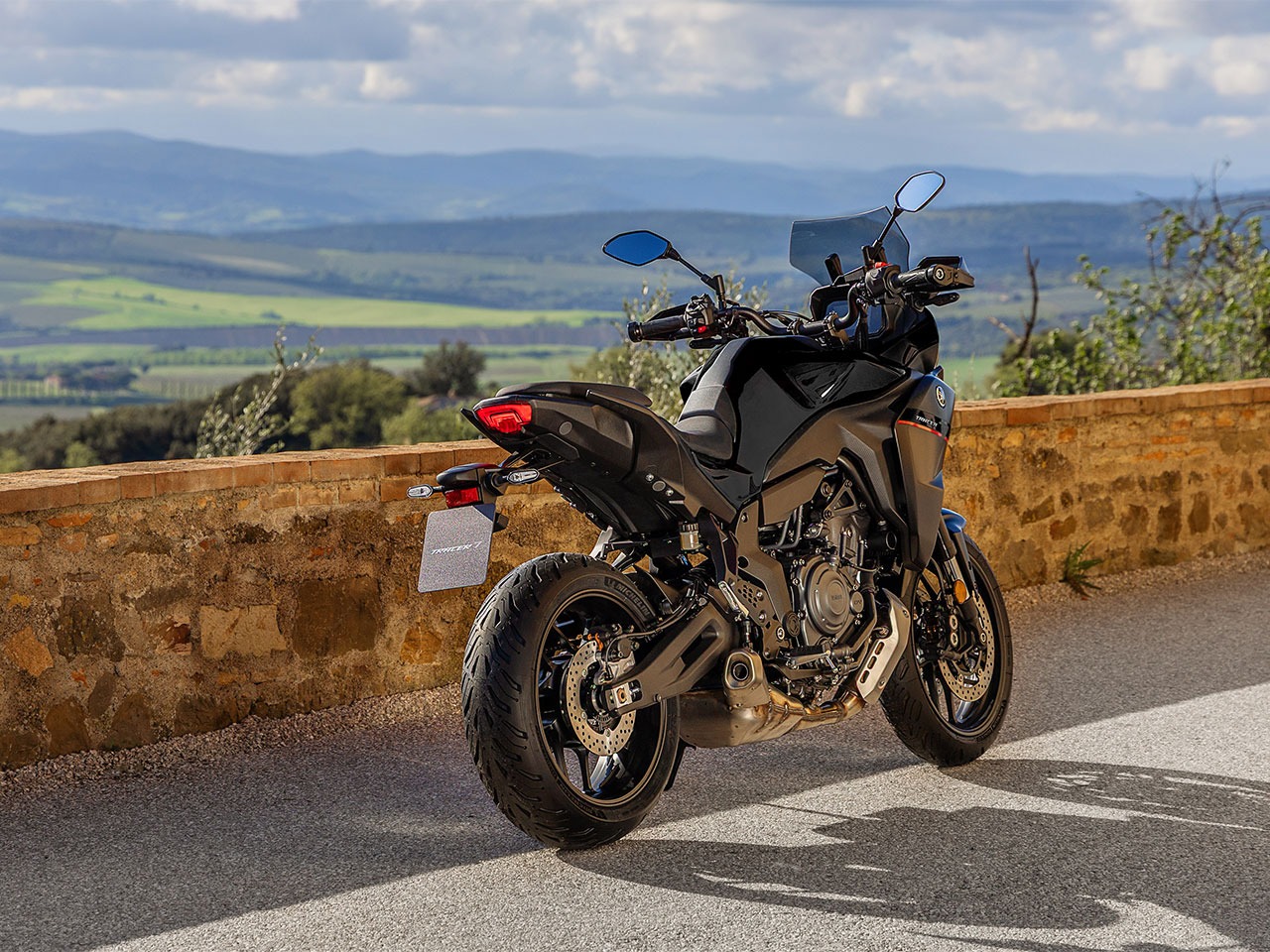

Tracer 7 is the ultimate middleweight for riders who want sport bike excitement combined with long-range versatility and urban flexibility. This model was available in Australia a few years ago with a LAMs engine but this latest version is new with many updated features and HO (High Output) only - so suits the more experienced rider who appreciates its combination of lightweight chassis and strong power delivery from the 689cc 270-degree twin.
Dual LED headlights and modern bodywork give the Tracer 7 a dynamic and sporty look that sets it apart from other bikes in the category. And there’s a wide range of optional Genuine Yamaha Accessories - including top case and panniers - that provide personalisation solutions.
Icon Performance
Redline
Midnight Black

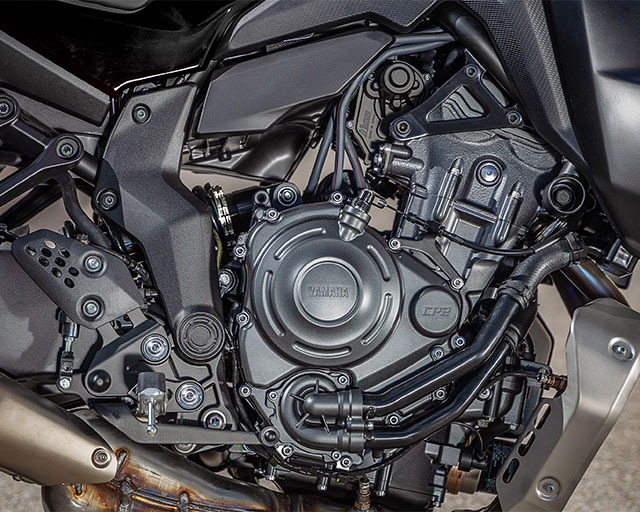

Torque-rich CP2 engine
The Tracer 7 features the compact 689cc liquid-cooled, inline twin cylinder, DOHC CP2 engine with fuel injection, outstanding low- to mid-range torque and strong high-rpm pulling power. Fuel injection settings are optimised for seamless, linear throttle response, even when the throttle is slightly open at low rpm.
TFT meter with smartphone connectivity
Tracer 7 has the new 5-inch full-colour TFT display that provides a choice of two different screen themes. The Sport Theme is a more modern looking layout with a bar-type tachometer at the top and digital speedo and gear selection readouts - while the Touring Theme has a more conventional circular analogue-style tachometer on the right of the screen and digital speedometer on the left.
Adjustable aerodynamic screen
The stylish and sporty aerodynamic screen is designed to give a relaxed and enjoyable ride by reducing wind buffeting to the upper body. There's also an updated ergonomic screen adjuster that allows for easy one hand height adjustment.
Contoured dual seat
You and your passenger can be sure of an extremely comfortable ride on the TRACER 7 thanks to its special seat design. Featuring a contoured profile and stylish stitch-type detailing, the one-piece dual seat enhances the bike's genuine long-distance touring capabilities.
Adjustable front and rear suspension
Tracer 7's front suspension features a 41mm cartridge fork with 130mm of travel while there's 142mm travel at the rear. Both front and rear feature preload and rebound damping adjusters that make it easy to set up your bike to suit different loads, road conditions and riding styles.
Technical Specifications
Engine
| Engine Type | Liquid-cooled, 4-stroke, DOHC, 4-valve, 2-cylinder |
|---|---|
| Displacement (cc) | 689 |
| Bore x Stroke (mm) | 80.0 x 68.6 |
| Compression Ratio | 11.5:1 |
| Lubrication System | Wet sump |
| Fuel Management | Fuel Injection |
| Ignition | TCI |
| Starter System | Electric |
| Fuel Tank Capacity (L) | 17.0 |
| Final Transmission | Chain |
| Transmission | Constant mesh 6-speed |
Chassis
| Frame Type | Diamond |
|---|---|
| Suspension Front | Telescopic forks, 130mm travel |
| Suspension Rear | Swingarm (link suspension), 142mm travel |
| Brakes Front | Hydraulic single disc, 298mm - ABS |
| Brakes Rear | Hydraulic single disc, 245mm - ABS |
| Tyres Front | 120/70 ZR 17M/C(58W) Tubeless |
| Tyres Rear | 180/55 R 17M/C(73W) Tubeless |
Dimensions
| Length (mm) | 2140 |
|---|---|
| Width (mm) | 840 |
| Height (mm) | 1290 / 1330 |
| Seat Height (mm) | 835 |
| Wheelbase (mm) | 1460 |
| Ground Clearance (mm) | 140 |
| Wet Weight (kg) | 197 |
