YFM90R
Yamaha YFM90R for Sale at TeamMoto Yamaha Sunshine Coast in Maroochydore, QLD | Specifications and Review Information
The YFM90R may be small in size, but it's equipped with several features found on larger Yamaha models - including double A-arm independent front suspension, a rear disc brake, CVT transmission and electric start.
The YFM90 balances power with a range of features to give you total peace of mind. A simple CDI plug-in adjusts engine power output to suit different riding abilities while a parking brake on the handlebar ensures that the YFM90 stays exactly where you left it. The fully automated gearbox allows junior to concentrate on the track to build confidence.

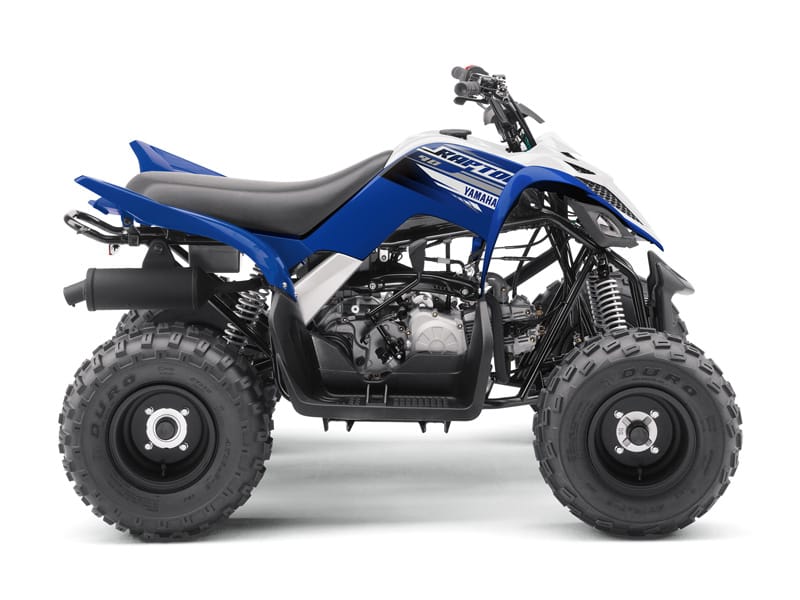

Yamaha YFM90R - Team Yamaha Blue
Yamaha YFM90R - Yamaha White
YAMAHA RAPTOR DNA

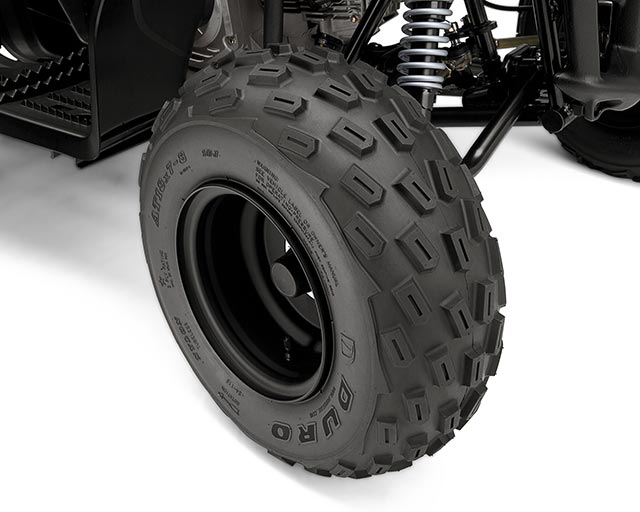

For sporty looks and handling, Raptor 90 uses low-profile Duro tyres on lightweight wheels and styling unmistakably inspired by the mighty Raptor 700R.
MODERN RELIABLE ELECTRONICS
The CDI system means reliable ignition performance, with a strong, efficient spark - and a sealed, maintenance-free battery gives worry-free service. Handlebar-mounted reverse and neutral indicators keep the rider informed, too.
ELECTRIC STARTER
Push-button electric starting comes standard, of course, and an emergency kick starter is also provided in a storage spot under the seat for additional peace of mind.
SPORTY 90CC ENGINE
The Raptor® 90 is built to bring maximum fun to the youth ATV class for riders 10 and up, with a low-maintenance 90cc engine tuned to develop excellent low-to-mid range performance. It also has features surprising in this segment, like a fully automatic CVT transmission with reverse, gated shifter (F/N/R) and electric start with a back-up kickstart - all standard.
COMFORTABLE CHASSIS
An advanced frame design incorporates a large 6.6 litre fuel tank, plush seat and roomy integrated floorboards inside a long, secure wheelbase.
SCALED DOWN NOT SCALED BACK
Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality, with preload-adjustable shocks offering 127mm of wheel travel and adding to the Raptor 90's full-size ATV look. The rear swingarm also features a 5-way preload adjustable shock, offering 147mm of wheel travel.
Technical Specifications
Engine
Engine Type | Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder |
---|---|
Displacement (cc) | 90 |
Bore x Stroke (mm) | 47.0 x 51.8 |
Compression Ratio | 9.2 : 1 |
Lubrication System | Wet sump |
Fuel Management | H66D x 1 |
Ignition | CDI |
Starter System | Electric and Kick |
Fuel Tank Capacity (L) | 6.6 |
Final Transmission | Chain |
Transmission | V-belt automatic, F, N, R |
Chassis
Frame Type | Steel tube |
---|---|
Suspension Front | Single A-arm, 126mm travel |
Suspension Rear | Swingarm, 145mm travel |
Brakes Front | Dual drums |
Brakes Rear | Drum |
Tyres Front | AT18 x 7-8 |
Tyres Rear | AT18 x 9-8 |
Dimensions
Length (mm) | 1485 |
---|---|
Width (mm) | 1020 |
Height (mm) | 955 |
Seat Height (mm) | 750 |
Wheelbase (mm) | 1030 |
Ground Clearance (mm) | 100 |
Wet Weight (kg) | 126.5 |
